Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color

Anhui Eastech Electric Co., Ltd.
Contact Now
    Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers

    Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers
    • Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers
    • Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers
    • Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers
    • Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers
    • Buy cheap Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color from wholesalers

    Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color

    Ask Lasest Price
    Brand Name : Eastech
    Certification : CE, RoHS, SAA, C-tick
    Model Number : AE-NFRD-WH
    Price : USD1.85 - 2.15/Pc Exw
    Delivery Time : 20 Days
    Payment Terms : T/T
    Supply Ability : 100,000 Pcs Per Month
    • Product Details
    • Company Profile

    Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color

    Product:

    Aluminium GU10 G5.3 Centre Tilt Twist Lock Downlight Gimble - White Color


    Product Pics:


    Optional Stylish Finishes:

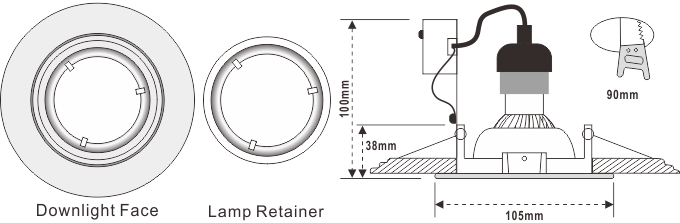

    Downlight Dimension:

    • Overall Diameter: 105mm
    • Depth: 38mm
    • Cut-out: 90mm

    Technical Parameters:


    Model No.AE-NFRD-WH
    Downlight InstallationEmbedded
    DimensionΦ105 x 38mm
    Cut-out90mm
    Suitable Lamp SocketGU10 / G5.3
    Suitable LampGU10 / G5.3 LED / CFL / Halogen Spotlight with Standard Size 50mm
    Input VoltageGU10: AC100 - 240V 50/60Hz; G5.3: DC12-24V
    Max Power of Suitable Lamp

    LED Max 6W

    CFL Max 20W

    Halogen Max 50W

    Illuminating Direction30° Tiltable
    Lamp Installation or Lamp ReplacementTwist & Lock (Lamp Retainer)
    Main MaterialDie Cast Aluminium (Better Choice for Heat Dissipation & Designed to Different Finishes)
    Optional Stylish FinishesWhite, Satin Nickel & Chrome
    IP (Ingress Protection)

    IP20

    Solid Objects: Protected Against Solid Objects Over 12.5mm e.g. Hands, Large Tools

    Liquids: No Protection

    Life-span≥10 Years
    Features

    Die Cast Aluminium for Superb Thermal Management & Stylish Finishes

    Twist & Lock Design for Easy Lamp Installation or Replacement

    Operating Temperature-30 / +50
    Application EnvironmentIndoor
    ManufacturerAnhui Eastech Light Industry Co., Ltd.
    CertifiedCE, RoHS, SAA, C-tick
    Warranty5 Years

    Three Models Available:

    IP20 Fixed, IP20 Centre Tilt & IP65 Bathroom


    Suitable Lamps:

    The suitable lamps for Eastech downlight fittings are LED (max 6W) / CFL (max 20W) / Halogen (max 50W) with standard diameter size 50mm.


    Lamp Installation or Replacement:

    The above pic shows seven main steps of lamp installation or replacement, which must be carried out after switching off the electricity.


    Application:

    • Commercial using: office buildings, factory, hotel, supermarket, hospital, restaurant, exhibition, show room, jewelry shop, amusement park, theater lighting, meeting room etc.
    • Domestic using: living room, bathroom, bedroom, villa, gym, halway etc.

    Note: Minimum distance from downlight to illuminated object is 0.5 meter.


    Packaging Details:

    • Each Downlight in One PE Bag
    • 150Pcs in One Carton

    Certificates:


    Production & Delivery:


    Company Profile:

    Engaged in the field of LED lighting, Eastech is dedicated to manufacturing technically advanced, energy efficient and innovative lighting products for all over the world.


    FAQ:

    Why Choose Eastech Products?

    • Eastech is specialized in LED lighting technology and application. And we have the in-house R&D team, performing continuous product research and improvement from time to time.
    • Eastech's products are certificated by the most prestigious national and international institutes.
    • Each procedure of the production process is conducting under strict quality control system. Our QC inspect each lot of incoming material and the finished products carefully, so that we can supply the best products for customers.
    • Our principle is to provide our customers the products with premuim quality and competitive price.
    • From the design to the production of our products, each procedure is controlled by ourselves. In this way, we can control the product cost optimally, offer client the best price and place our products in the most competitive position. Win-win is the ultimate aim of everything we do.

    Quality Control:

    • 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliablity, and we will also test its temperature after 24 hour lighting.
    • Then after it is cool we again test 100% of the lamps to see if they still work well. Each lamp should pass all these QC procedures before packaging.

    Trade Terms:

    • Payment term: T/T 30% deposit for production after order confirmed, the balance after product ready before shipment. Or paypal for small amount / samples.
    • Lead time: normally in 10 to 15 days after deposit received.
    • Sample policy: samples are always available for each model. Samples can be ready in 3 to 5 days once payment received.
    • Load port: Shanghai, China
    • Discounts: we offer discount for large quantity.

    Means of Transportation:

    • Products shipped by DHL/TNT/FedEx/UPS express take 3 to 5 days to arrive.
    • By air cargo take about one week to arrive.
    • By sea take about a month to arrive.
    • Depending on your actual requirements.


    Our Services:

    • For all your inquiries about our products or us, we will reply you in detail within 24 hours.
    • We own well-trained and professional sales & after-sale services who can speak English fluently.
    • We offer OEM services, can print your own logo on our products, can customize the retail box, carton and other things.
    • We have very experienced R&D engineers and we have strong ability to do ODM projects.
